DCS-BIOS Nano Shield

$ 22,99

Available on backorder

SKU: nano-shield Categories: , , Tags: ,

Description

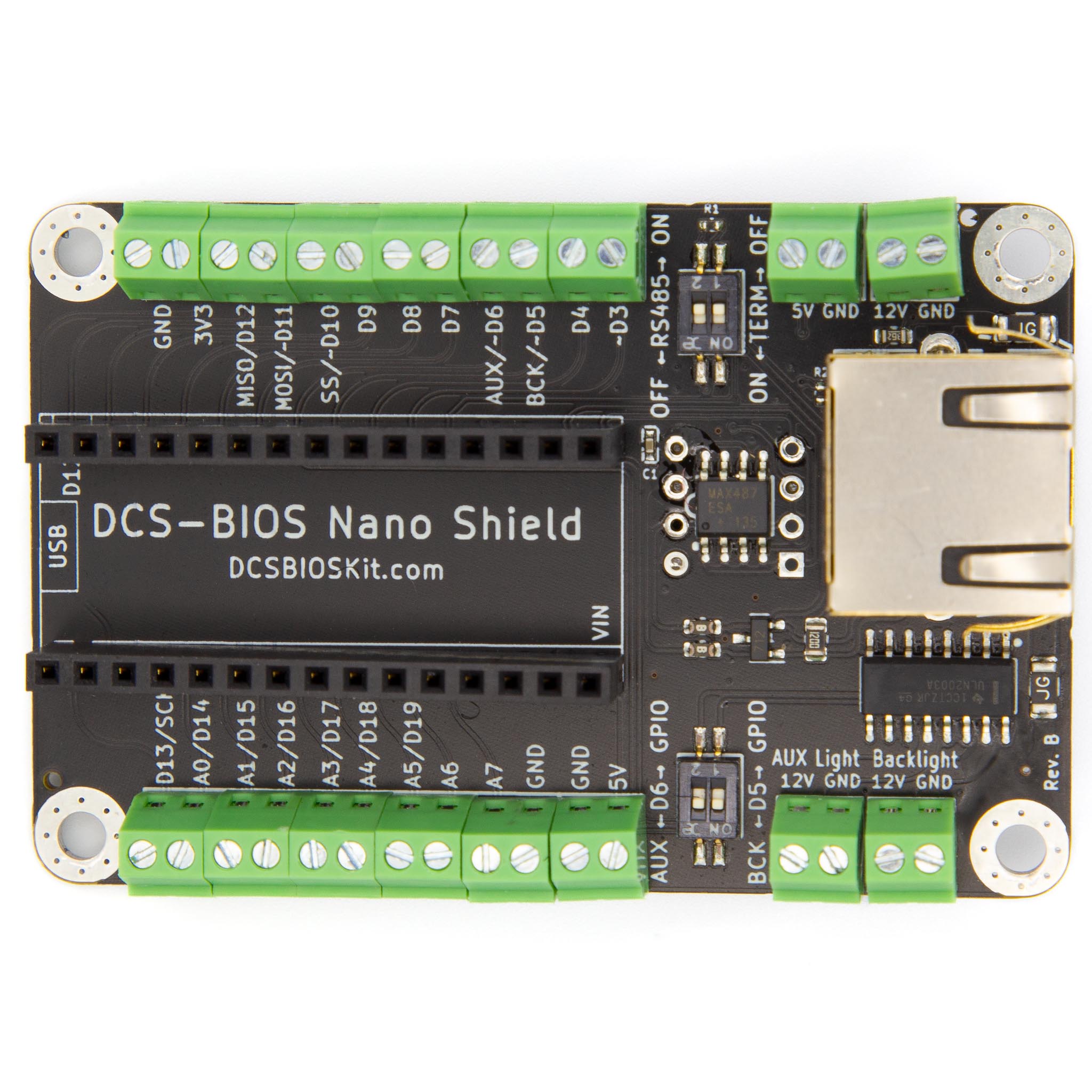

Take your flight simulation experience to new heights with our custom-designed Arduino Nano shield! Specifically engineered to enhance flight simulator panels, this shield provides dual-channel backlight control and robust RS485 communication, all while maintaining convenient access to your Arduino Nano’s pins.

Key Features:

  1. Designed for Arduino Nano: Seamlessly attach this shield to your existing Arduino Nano to enable enhanced features for your flight simulator projects. The plug-and-play design ensures a hassle-free experience.
  2. Dual-Channel Backlight Driver: Our shield’s unique dual-channel backlight driver allows independent control of two separate lighting zones. Create intricate and immersive lighting effects for a realistic cockpit experience. Note that if the backlight drivers are used, pins 5 and 6 become unavailable.
  3. Integrated RS485 Communication (MAX487): The shield employs the industry-standard MAX487 for the RS485 protocol, allowing for reliable long-distance communication between devices using DCS-BIOS. Synchronize your flight instruments, panels, or entire cockpit with precision.
  4. Integrated Backlight Driver – Allows you to keep your simpit backlight in sync with DCS World for a more immersive experience.
  5. Convenient Screw-Terminal Access: All Arduino Nano pins are readily available through easy-to-use screw terminals. Enjoy the freedom to connect various devices and components without sacrificing the usability of your Nano’s pins.
  6. Optimized for Flight Simulators: From hobbyists to professional flight simulation enthusiasts, this shield is tailored to suit your aviation needs. Craft intricate panels or complete cockpit replicas for an unparalleled flying experience.
  7. High-Quality Craftsmanship: Designed with care and precision, our shield ensures optimal performance and durability. The compact layout and thoughtful design make it an ideal solution for your flight simulator projects.
  8. Flexible Compatibility: Fully compatible with DCS-BIOS and all modules supported by DCS-BIOS, this shield integrates seamlessly into your DCSBIOSKit system, whether you have a simple desktop setup or a comprehensive cockpit replica.

Specifications:

  • Backlight Control: Dual-Channel high-quality Texas Instruments PWM-Controlled Driver
  • Communication: RS485 Interface based on MAX487
  • Input/Output Pins: All original Nano pins exposed via screw terminals (except pins 5 and 6 if backlight channels are used)
  • Compatibility: Arduino Nano and DCS-BIOS
  • Dimensions: 70x45mm.

Conclusion:

The Custom Arduino Nano Shield with Dual-Channel Backlight Driver & RS485 is the ideal addition to any flight simulator enthusiast’s toolkit. With its unique features and user-friendly design, this shield empowers you to take your virtual flying experience to the next level.

Order Now & Elevate Your Flight!

Whether you’re building your first flight panel or expanding an existing setup, our custom shield offers the functionality and flexibility you need. Purchase today and let your aviation imagination soar!

Power Delivery

How much current can i draw? Please see table below. Testing has shown that an average panel with LED-backlight draws around 100mA, thus if you use all 3 buses you can connect well over 100 panels. So in practice, if you don’t go absolutely crazy, you don’t really need to worry too much about this.

Please use standard network cables (not the slim-type). At least 26 AWG is recommended, smaller numbers mean more power. Slim-type cables are usually 28 AWG and would limit your Slaves to about 500mA instead of 1A, although even this is usually enough for most panels. If your panels include a lot of servos, steppers or incandescent bulbs, you should calculate or measure your power draw.

ComponentAbsolute Limit
System as a whole, limited by the Master Controller15A, 5A per Bus (180W)
Each Slave Controller, including backlight and auxiliary light drive.1A Per Slave (12W)
⚠️ Warning! Do not hotplug any cables other than USB. Do not connect to home network, DCSBIOSKit uses RS485 and is not ethernet-compatible. Permanent damage will occur, such damage is not covered by warranty! Only connect DCSBIOSKit-compatible products together.
ℹ️ DIY Product! While much effort has been put into ease of use, this is still a DIY product and requires some basic knowledge of electronics and Arduino-programming. If you know how to connect a switch to DCS-BIOS using an Arduino – you will be able to use this product. If you don’t – I suggest you check out the instructions on this site or watch some DCS-BIOS tutorials like this one.

Physical appearance may vary due to availability of components and other factors, functionality remains the same.
